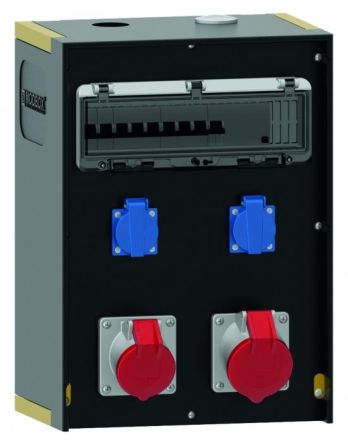

MODBOX, protection class: IP44, housing: impact-resistant, flame-retardant solid rubber housing, UV resistant, halogen-free, ageing, temperature, oil and acid resistant, good chemical resistance, safety elements arranged under transparent, snap-in operating flap, device color: lower housing section black similar to RAL 9017, upper housing section black similar to RAL 9017, device height: 420 mm, device width: 300 mm, device depth: 175 mm, RDF factor: 0.66, InA: 63, equipment:, 2 x earthed socket 16A 230V IP54 blue, 1 x CEE socket 16A 400V 5p 6h IP44 inclined, 1 x CEE socket 32A 400V 5p 6h IP44 inclined, protection/protective measure:, 2 x C-automatic 16A 1p, 1 x C-automatic 16A 3p, 1 x C-automatic 32A 3p, 1 x FI-switch 63/0.03A 4p, Cable entry/connection option:, 2 x M40 top, 2 x M40 bottom, 1 x meter terminal block 5x25 mm² / type: C (conductor line), Additional information:, Wired and ready for connection.
Property | Value |
CEE socket - 16 A: | 1x16A5p400V |
CEE socket - 32 A: | 1x32A5p400V |
CEE socket - 63 A: | without |
CEE socket - 125A: | without |
Number of SCHUKO sockets: | 2 |
Width: | 300 mm |
Height: | 420 mm |
Depth: | 175 mm |
Protection: | LS switch |
FI circuit breaker: | FI with IFN 0.03 A (standard) |
Feed/connection option: | 2 lines (ring line/for looping through) |
Handling: | Wall mounting |
Protection class (IP): | IP44 |
Military version: | no |
Number of circuit breakers: | 4 |
