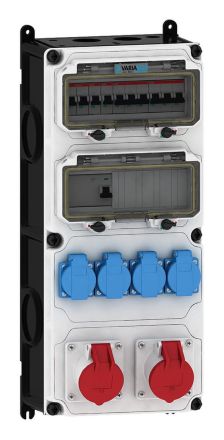

VARIABOX - XL, standard: DIN EN 61439, protection class: IP44, housing: high-quality, impact-resistant plastic housing (PBT), sealable, with external and internal fastening, top section straight and hinged on the side, fuse mounted on a pull-out mounting rail, cover screws captive, fuse elements arranged under a transparent operating flap, with user-friendly OTC mechanism (one touch close), device color: lower housing section black similar to RAL 9017, upper housing section gray RAL 7035, device height: 520 mm, device width: 230 mm, device depth: 145 mm, RDF factor: 0.65, InA: 40, equipment: 4 x earthed socket 16A 230V IP54 blue, 2 x CEE socket 16A 400V 5p 6h IP44 inclined, Fuse protection/protective measures:, 4 x C-automatic 16A 1p, 2 x C-automatic 16A 3p, 1 x residual current device 40/0.03A 4p/ total, Cable entry/connection option:, 1 x M12, 1 x M20, 2 x M40 top, 1 x M12, 1 x M20, 2 x M40 bottom, 1 x meter terminal block 5x25 mm² / type: C (conductor line), Additional information:, Wired and ready for connection.
| Property | Value |
| CEE socket - 16 A: | 2x16A5p400V |
| CEE socket - 32 A: | without |
| CEE socket - 63 A: | without |
| CEE socket - 125A: | without |
| Number of SCHUKO sockets: | 4 |
| Width: | 230 mm |
| Height: | 520 mm |
| Depth: | 145 mm |
| Protection: | LS switch |
| FI circuit breaker: | FI with IFN 0.03 A (standard) |
| Handling: | Wall mounting |
| Housing material: | Plastic |
| Protection class (IP): | IP44 |
| Military version: | no |
| Number of circuit breakers: | 6 |
| Type of mains connection: | other |
| Color: | gray |
