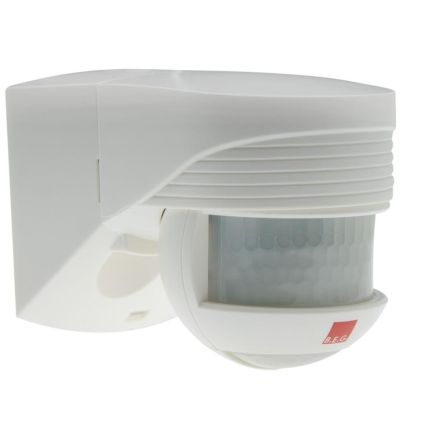

BEG 91002 LC200° white motion detector

BEG 91002 LC200° white motion detector

In stock

SKU: 389570

Price on request

€46.87

€0

Overview

Motion detector with 200 degree detection range and 180 degree creep protection, movable ball head, detection range can be restricted by cover slats, zero crossing switching, easy installation thanks to plug-in base, cable entry from above, below and from behind possible, installation on standard flush-mounted boxes possible

Property	Value
Depth:	103.0 mm
Width:	78.0 mm
Height:	80.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Response brightness:	2 to 500 lx
Protection class (IP):	IP54
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	yes
Min. duty cycle:	4 s
Max. Duty cycle:	20 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. presence range:	6.0 m²
Max. Frontal range:	4 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	2 mA
Number of switching zones:	250.0
Frequency:	50 to 60 Hz
Sensor swivel range, vertical:	-20 to 20 °
Sensor swivel range, horizontal:	-45 to 45 °
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	no
With Signal unit:	no
Alarm function:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Antibacterial treatment:	no
Impact resistance:	IK04

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones250.0

Response brightness2 to 500 lux

Max. presence range6.0 m²

HABLC200° white

Manufacturer

HAN91002

GTIN4007529910021

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width78.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height80.0 mm

Max. duty cycle20 min

Max. range frontal4m

Max. range to one side12m

Max. switching capacity1000W

Min. duty cycle4s

With DALI interfaceNo

With remoteNo

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Temperature-25 to 50 °C

Depth103.0 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
