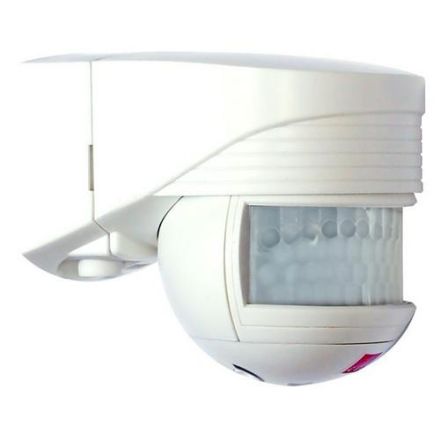

BEG 91102 motion detector LC-Click 200 white

BEG 91102 motion detector LC-Click 200 white

In stock

SKU: 1031014

Price on request

€39.95

€0

Overview

Motion detector with 200 degree detection range, movable ball head, easy installation with plug-in base, detection range can be restricted by cover slats

Property	Value
Depth:	103.0 mm
Width:	78.0 mm
Height:	80.0 mm
Version:	Motion detector
Nominal voltage:	230 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	100 to 300 lx
Protection class (IP):	IP44
Max. switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	12 m
Suitable for wall mounting:	yes
Min. duty cycle:	4 s
Max. Duty cycle:	10 min
Creep-under protection/rear field monitoring:	no
Temperature:	-20 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. frontal range:	5 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal mounting height:	2 m
Surface finish:	matt
Material quality:	other
Detection field diameter on floor:	20 m
Number of switching zones:	250.0
Frequency:	50 to 60 Hz
Sensor swivel range, vertical:	-20 to 20 °
Sensor swivel range, horizontal:	-45 to 45 °
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	yes
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	no
With Signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Antibacterial Treatment:	no

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones250.0

Response brightness100 to 300 lux

Forced shutdownNo

Max. inrush current10 A

HABLC-Click 200 white

Manufacturer

HAN91102

GTIN4007529911028

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width78.0 mm

Detection field diameter on floor20m

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height80.0 mm

Constant light controlNo

Max. duty cycle10mins

Max. range frontal5 m

Max. range to one side12m

Max. switching capacity1000W

Min. duty cycle4s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

Optimal mounting height2m

RAL number (similar)9010.0

IP protection)IP44

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-20 to 50 °C

Depth103.0 mm

Animal corridorYes

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityOther
