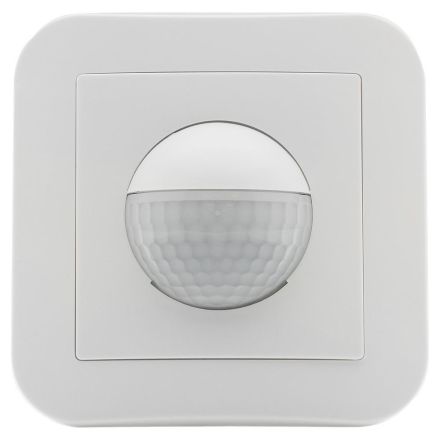

BEG 92135 for Indoor 180-Slave flush-mounted complete sensor insert

BEG 92135 for Indoor 180-Slave flush-mounted complete sensor insert

In stock

SKU: 388869

Price on request

€86.07

€0

Overview

Slave device, To extend the detection range of a master device, Compatible with 230 V master devices, for exceptions please see the respective master device., Available with frame (inner cover dimensions 60 x 60 mm) or without frame for combination with cover frame (inner cover dimensions 50 x 50 mm) in 5 different colors, In conjunction with central plates can be used in common frame systems from various manufacturers, BEG cover frames and central plates available for combination with other frame systems

Property	Value
Depth:	87.0 mm
Width:	87.0 mm
Height:	61.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	flush-mounted
Protection class (IP):	IP20
Voltage type:	AC
Max. range to one side:	10 m
Suitable for wall mounting:	yes
Creep-by protection/rear field monitoring:	no
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Max. Frontal range:	3 m
Sensor type:	passive infrared
Optimal mounting height:	1.1000000000000001 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	1 mA
Number of switching zones:	150.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	yes
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Antibacterial treatment:	no
Impact resistance:	IK05

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones150.0

HABFor Indoor 180-Slave flush-mounted complete.

Manufacturer

HAN92135

GTIN4007529921355

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width87.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height61.0 mm

Max. range frontal3m

Max. range to one side10m

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height1.1000000000000001m

RAL number (similar)9010.0

Impact resistanceIK05

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Depth87.0 mm

Animal corridorYes

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityOther
