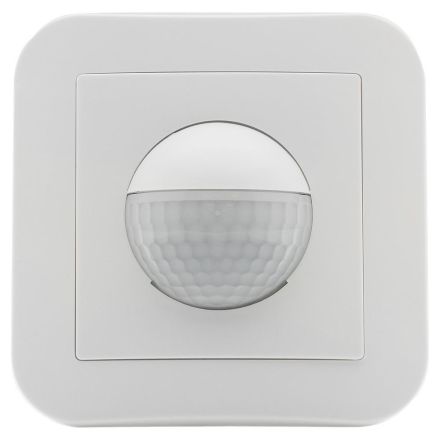

BEG 92136 for Indoor 180-Master flush-mounted complete sensor insert

In stock
SKU: 388868
€110.84
Into a basketIn the basketGo

Overview

Wall-mounted presence detector with acoustic sensor, One channel for switching light, An additional potential-free contact for HKL, Designed as a master device, Extension of the detection range with slave devices possible, Acoustic sensor individually adjustable, Automatic extension of the follow-up time due to noise, Available with frame (inner cover dimensions 60 x 60 mm) or without frame for combination with cover frame (inner cover dimensions 50 x 50 mm) in 5 different colors, Can be used in conjunction with central plates in common frame systems from various manufacturers, BEG cover frames and central plates available for combination with other frame systems, Factory setting 10 min and 500 lux (15 min HKL)

PropertyValue
Depth:87.0 mm
Width:87.0 mm
Height:61.0 mm
Version:Presence detector
Color:white
Nominal voltage:240 V
RAL number (similar):9010.0
Material:Plastic
Mounting type:Flush-mounted
Protection class (IP):IP20
Max. switching capacity:2300 W
Voltage type:AC
Max. range to one side:10 m
Suitable for wall mounting:yes
Min. duty cycle:15 s
Max. Duty cycle:30 min
Creep-under protection/rear field monitoring:no
Temperature:-25 to 50 °C
Adjustable response brightness:no
Adjustable response sensitivity:yes
Max. range, frontal:3 m
Max. Inrush current:165 A
Sensor type:passive infrared
Optimal mounting height:1.10000000000000001 m
Surface finish:matt
Surface:untreated
Material quality:other
Detection field diameter on floor:10 m
Control current:2 mA
Number of switching zones:150.0
Frequency:50 to 60 Hz
Halogen-free:yes
HVAC control:yes
Forced shutdown:yes
Animal corridor:yes
Networkable:no
Staircase monitoring:yes
Bypass switch:no
Suitable for wireless transmission:no
Remote controllable:yes
With signal unit:no
Alarm function:yes
Teach function for response brightness:yes
Dimming function with dimming insert:no
Transparent:no
With remote control:no
Suitable for C load:no
With DALI interface:no
Extension input:yes
Suitable for ceiling mounting:no
Antibacterial treatment:no
Impact resistance:IK05

Characteristics

Bridging switchNo
With signal unitNo
Number of switching zones150.0
Forced shutdownYes
Max. inrush current165 A
HABFor Indoor 180-Master flush-mounted complete.
ManufacturerB.E.G.
HAN92136
GTIN4007529921362
Dimming function with dimming insertNo
Alarm functionYes
Response sensitivity adjustableYes
Response brightness adjustableNo
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Width87.0 mm
Detection field diameter on floor10m
ColorWhite
Remote controllableYes
Frequency50 to 60 Hz
Suitable for C-loadNo
Suitable for ceiling mountingNo
Suitable for wall mountingYes
Suitable for wireless transmissionNo
HVAC controlYes
Halogen freeYes
Height61.0 mm
Max. duty cycle30 min
Max. range frontal3m
Max. range to one side10m
Max. switching capacity2300W
Min. duty cycle15s
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage240V
SurfaceUntreated
Optimal mounting height1.1000000000000001m
RAL number (similar)9010.0
Impact resistanceIK05
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-25 to 50 °C
Depth87.0 mm
Animal corridorYes
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityOther
BEG 92136 for Indoor 180-Master flush-mounted complete sensor insert
