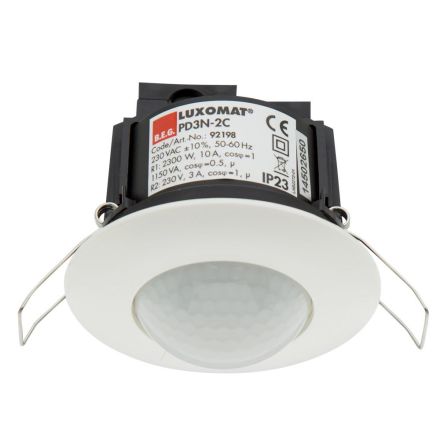

BEG 92198 PD3, 2 channels, ceiling-mounted motion detector

BEG 92198 PD3, 2 channels, ceiling-mounted motion detector

In stock

SKU: 388916

Price on request

€92.53

€0

Overview

Remote-controlled ceiling motion detector, One channel for switching light, Switching at zero crossing, One additional potential-free contact for HVAC, Additional functions can be set via optional remote control

Property	Value
Height:	81.0 mm
Design:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	other
Response brightness:	20 to 2000 lx
Protection class (IP):	IP23
Max. Switching capacity:	2300 W
Voltage type:	AC
Max. range to one side:	5 m
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. duty cycle:	30 min
Creep-by protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Presence area:	12.0 m²
Max. frontal range:	6 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	2 mA
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	yes
Teach function for Response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	83.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Response brightness20 to 2000 lx

Max. inrush current165 A

Max. presence range12.0 m²

HABPD3, 2 channels, ceiling installation

Manufacturer

HAN92198

GTIN4007529921980

Dimming function with dimming insertNo

Alarm functionYes

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter83.0 mm

Detection field diameter on floor10m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlYes

Halogen freeYes

Height81.0 mm

Max. duty cycle30 min

Max. range frontal6m

Max. range to one side5 m

Max. switching capacity2300W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP23

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
