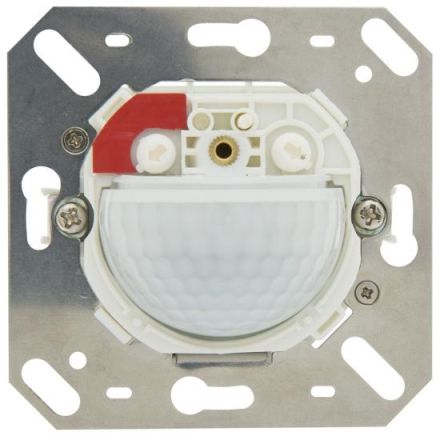

BEG 92666 for Indoor 180-R, 24V AC-DC, flush-mounted sensor insert

BEG 92666 for Indoor 180-R, 24V AC-DC, flush-mounted sensor insert

In stock

SKU: 389546

Price on request

€103.75

€0

Overview

Wall motion detector with acoustic sensor with an operating voltage of 11-48 V, One potential-free switching channel, Acoustic sensor individually adjustable, Automatic extension of the run-on time due to noise, Manual switching via button possible, Available with frame (inner cover dimensions 60 x 60 mm) or without frame for combination with cover frame (inner cover dimensions 50 x 50 mm) in 5 different colors, Can be used in conjunction with central plates in common frame systems from various manufacturers, BEG cover frames and central plates available for combination with other frame systems

Property	Value
Depth:	70.0 mm
Width:	70.0 mm
Height:	61.0 mm
Version:	Motion detector
Color:	Other
Nominal voltage:	48 V
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Voltage type:	AC/DC
Max. Range to one side:	10 m
Suitable for wall mounting:	yes
Min. duty cycle:	15 s
Max. duty cycle:	16 min
Creep-under protection/rear field monitoring:	no
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Max. Frontal range:	3 m
Sensor type:	passive infrared
Optimal mounting height:	1.10000000000000001 m
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	4 mA
Number of switching zones:	150.0
Halogen-free:	yes
HVAC control:	no
Animal corridor:	yes
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Antibacterial treatment:	no
Impact resistance:	IK05

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones150.0

HABFor Indoor 180-R, 24V AC-DC, flush-mounted

Manufacturer

HAN92666

GTIN4007529926664

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Width70.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height61.0 mm

Max. duty cycle16 min

Max. range frontal3m

Max. range to one side10m

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage48V

SurfaceUntreated

Optimal mounting height1.1000000000000001m

Impact resistanceIK05

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC/DC

Teach function for response brightnessNo

Temperature-25 to 50 °C

Depth70.0 mm

Animal corridorYes

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

Material qualityOther
