BEG 92902 motion detector PD9-1C-DE

In stock

SKU: 1030954

Price on request

€76.69

€0

Overview

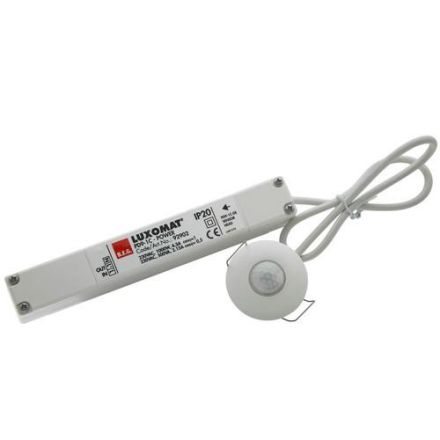

Mini motion detector for indoor use, one channel for switching light, zero crossing switching, easy setting on the device, power unit fits through the hole for the detector in the ceiling (at 34 mm d.), spring clips for quick and easy installation in suspended ceilings and in lights, including 45 mm cover ring and cover slats

Property	Value
Height:	37.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	other
Protection class (IP):	IP20
Max. Switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	5 m
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. Duty cycle:	30 min
Anti-creep protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. presence range:	12.0 m²
Max. frontal range:	6 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	10 m
Control current:	2 mA
Number of switching zones:	78.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Dimming function with Dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK03
Diameter:	45.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones78.0

Max. inrush current165 A

Max. presence range12.0 m²

HABPD9-1C-DE

Manufacturer

HAN92902

GTIN4007529929023

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter45.0 mm

Detection field diameter on floor10m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height37.0 mm

Max. duty cycle30 min

Max. range frontal6m

Max. range to one side5 m

Max. switching capacity1000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK03

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
