BEG 92934 PD9-1C-GH-DE, white motion detector

BEG 92934 PD9-1C-GH-DE, white motion detector

In stock

SKU: 388993

Price on request

€130.95

€0

Overview

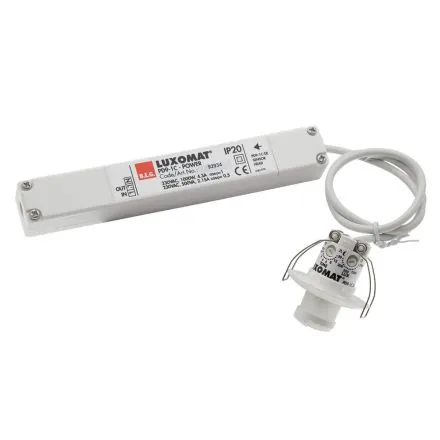

Mini motion detector especially for high altitudes, one channel for switching light, switching at zero crossing, easy setting on the device, power unit fits through the hole for the detector in the ceiling (at 34 mm d. ), spring clips for easy and quick installation in suspended ceilings and in lights, including 45 mm cover ring and cover slat

Property	Value
Height:	49.0 mm
Version:	motion detector
Color:	white
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	plastic
Mounting type:	other
Protection class (IP):	IP20
Max. Switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	1.75 m
Suitable for wall mounting:	no
Min. duty cycle:	30 s
Max. Duty cycle:	30 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Response brightness adjustable:	no
Response sensitivity adjustable:	no
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal installation height:	6 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	6 m
Control current:	2 mA
Number of switching zones:	9.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	45.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones9.0

Max. inrush current165 A

HABPD9-1C-GH-DE, white

Manufacturer

HAN92934

GTIN4007529929344

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter45.0 mm

Detection field diameter on floor6m

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height49.0 mm

Max. duty cycle30 min

Max. range to one side1.75m

Max. switching capacity1000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeOther

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height6m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
