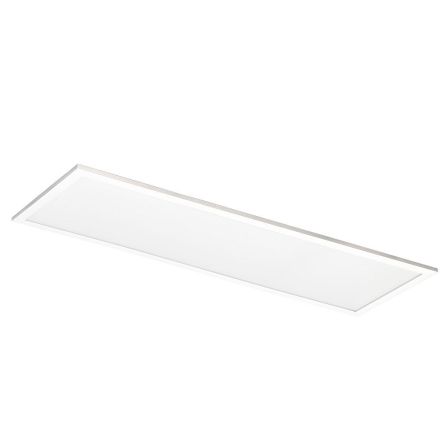

HABPL1 31125 LED AG DALI TW
HAN93077
GTIN4007529930777
Rated lifetime L80/B10 at 25 °C60000 hours
Rated luminous flux according to IEC 62722-2-13850.0lm
Rated ambient temperature according to IEC62722-2-1-20.0 to 40.0 °C
Width1245.0 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableYes
Color temperature2700.0 to 6500.0 K
Color rendering index CRI80-89
Suitable for surface mountingNo
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Housing colorWhite
Height/Depth10 mm
Conductor cross-section1.5 mm²
Luminaire luminous efficacy86.0lm/W
LampsOther
Light emissionDirect
Light colorWhite
Length307 mm
Max. system performance45W
With operating deviceYes
With motion detectorNo
With light sourceNo
With light sensorNo
Nominal voltage200 to 240 V
Without dimming functionNo
IP protection)IP20
Protection classII
Voltage typeAC
