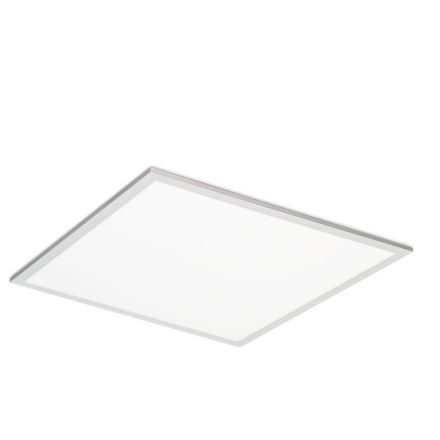

BEG 93094 PL1 625 LED AG DALI TW LED recessed luminaire

BEG 93094 PL1 625 LED AG DALI TW LED recessed luminaire

In stock

SKU: 405713

Price on request

€287.55

€0

Overview

LED panel light in a very flat design -For installation in suspended ceiling systems Module 625 -Adjustable light color from 2700 K to 6500 K -DALI driver type 8 for color control -Good glare control thanks to microprismatic UGR<19 -Very even illumination of the prismatic cover

Property	Value
System power:	45 W
Luminous flux:	3350.0 lm
Length:	620 mm
Width:	620.0 mm
Height/depth:	10 mm
Protection type (IP):	IP20
Protection class:	II
Nominal voltage:	200 to 240 V
Housing color:	white
Color temperature:	2700.0 to 6500.0 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED not replaceable
Temperature:	-20.0 to 40.0 °C
With Operating device:	yes
Light distributor:	diffuser lens/optics/panel
Without dimming function:	no
Light emission:	direct
With light sensor:	no
Operating device:	LED operating device, current-controlled
Light color:	white
Suitable for light strip configuration:	no
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	74.0 lm/W
Conductor cross-section:	1.5 mm²

Characteristics

HABPL1 625 LED AG DALI TW

Manufacturer

HAN93094

GTIN4007529930944

Operating deviceLED control gear current controlled

Width620.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Color temperature2700.0 to 6500.0 K

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth10 mm

Conductor cross-section1.5 mm²

Luminaire luminous efficacy74.0lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3350.0lm

Light distributorDiffuser lens/optics/panel

Length620 mm

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage200 to 240 V

Without dimming functionNo

IP protection)IP20

Protection classII

Voltage typeAC

System performance45W

Temperature-20.0 to 40.0 °C

BEG 93094 PL1 625 LED AG DALI TW LED recessed luminaire

Price on request

€287.55

€0
