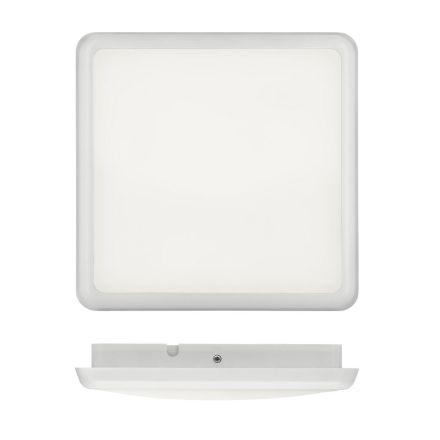

Extremely flat LED light for wall or ceiling mounting

Robust plastic housing made of polycarbonate with a high fire protection value, water-protected (IP54) after installation

Integrated (HF) radar sensor, not visible from the outside and with a large detection range

Three light colors in one light, switchable between warm, neutral or daylight white lighting

DIP switch adjustable run-on time, switch-on threshold and sensor sensitivity

Energy-efficient light with a long service life >40,000 h

Wide light distribution thanks to diffuse light cover

Easy installation with a separate mounting bracket

Property	Value
Rated luminous flux according to IEC 62722-2-1:	2600.0 lm
Length:	300 mm
Width:	300.0 mm
Height/depth:	48 mm
Protection type (IP):	IP20
Protection class:	II
Nominal voltage:	200 to 240 V
Housing color:	white
Material of Housing:	Plastic
Color temperature:	3000.0 to 5700.0 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Voltage type:	AC
With motion detector:	yes
With Light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20.0 to 45.0 °C
Without dimming function:	yes
Light emission:	direct
With light sensor:	yes
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for light strip configuration:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
GPRS dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	104.0 lm/W
Conductor cross-section:	1.5 mm²

Characteristics

HABAL12 25 300 LED 3C HF

Manufacturer

HAN93145

GTIN4007529931453

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12600.0lm

Rated ambient temperature according to IEC62722-2-1-20.0 to 45.0 °C

Operating deviceNot required

Width300.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000.0 to 5700.0 K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth48 mm

Conductor cross-section1.5 mm²

Luminaire luminous efficacy104.0lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Length300 mm

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage200 to 240 V

Without dimming functionYes

Impact resistanceIK10

IP protection)IP20

Protection classII

Voltage typeAC

Housing materialPlastic
