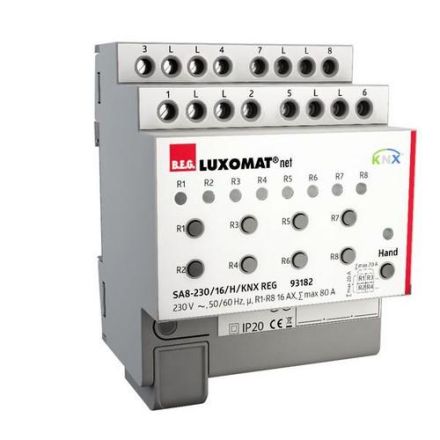

BEG 93182 Switch actuator SA8-230/10/H/KNXs-K REG KNX

In stock

SKU: 1031003

Price on request

€301.70

€0

Overview

Switching actuator for switching consumers, KNX series installation device for mounting on a top hat rail (TH 35 according to EN 60715) for installation in the distributor, switching contacts are optimized for capacitive loads, the switching actuator is supplied by the KNX bus and does not require an additional power supply, the outputs are connected via screw terminals

Property	Value
Width in modular spaces:	8
Max. number of switching outputs:	8
Mounting type:	REG
Protection class (IP):	IP20
Max. switching capacity:	2300 W
KNX bus system:	yes
Max. Switching current:	10 A
Bus system radio bus:	no
Bus system Powernet:	no
With bus connection:	yes
Bus system LON:	no
Other bus systems:	without
Local/manual operation:	yes
With LED display:	yes
Suitable for C load:	yes
Rated current:	16 A
Rated operating voltage:	30 V
Different phases can be connected:	no
Modular expansion option:	no
KNX radio bus system:	no
Bidirectional radio:	no
Removable bus module:	no
Output power:	2300 W
