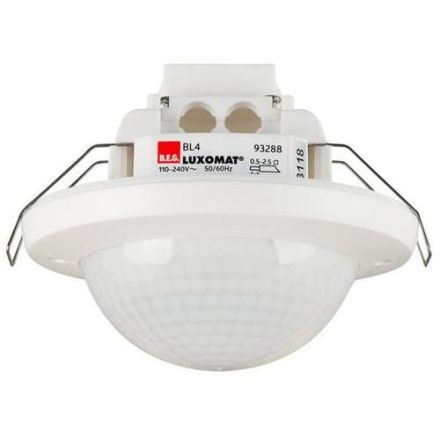

BEG 93288 Motion detector BL-4-DE

In stock

SKU: 1030976

Price on request

€82.95

€0

Overview

Ceiling motion detector for indoor applications with 360 degree detection range, For installation in suspended ceilings, One channel for switching light, Manual switching via button possible, Simple parameterization using remote control (optional), Basic functions for cost-effective applications, With factory setting for direct commissioning, Accessories for surface and flush mounting optionally available, Factory setting: Detection sensitivity high, run-on time 10 min, switch-on threshold 500 lux

Property	Value
Height:	84.0 mm
Design:	motion detector
Nominal voltage:	240 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	other
Response brightness:	10 to 2000 lx
Protection class (IP):	IP20
Max. Switching capacity:	1000 W
Voltage type:	AC
Max. range to one side:	9.5 m
Suitable for wall mounting:	no
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. Presence area:	19.0 m²
Sensor type:	passive infrared
Optimal installation height:	2.5 m
Surface finish:	matt
Surface:	untreated
Detection field diameter on floor:	19 m
Number of switching zones:	280.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK04
Diameter:	104.5 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones280.0

Response brightness10 to 2000 lx

Max. presence range19.0 m²

HABBL-4-DE

Manufacturer

HAN93288

GTIN4007529932887

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Diameter104.5 mm

Detection field diameter on floor19m

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height84.0 mm

Max. range to one side9.5m

Max. switching capacity1000W

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage240V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK04

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

NetworkableNo

MaterialPlastic
