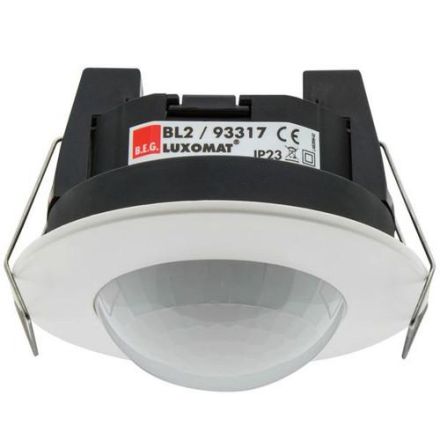

BEG 93317 Motion detector BL-2-DE

In stock

SKU: 1030975

Price on request

€52.89

€0

Overview

Ceiling motion detector for indoor applications with 360 degree detection range, For installation in suspended ceilings, One channel for switching light, Switching at zero crossing, Simple parameterization using remote control (optional), Basic functions for cost-effective applications, With factory setting for direct commissioning, Accessories for surface and flush mounting optionally available, Factory setting: Detection sensitivity high, Follow-up time 10 min, Switch-on threshold 500 lux

Property	Value
Height:	61.0 mm
Design:	motion detector
Color:	white
Nominal voltage:	240 V
Mounting type:	other
Response brightness:	10 to 2000 lx
Protection class (IP):	IP23
Max. switching capacity:	1000 W
Max. Range to one side:	4 m
Suitable for wall mounting:	no
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Max. presence range:	8.0 m²
Max. Frontal range:	4.8 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Material quality:	other
Number of switching zones:	50.0
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bridging switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK05
Diameter:	80.0 mm

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones50.0

Response brightness10 to 2000 lx

Max. presence range8.0 m²

HABBL-2-DE

Manufacturer

HAN93317

GTIN4007529933174

Dimming function with dimming insertNo

Alarm functionNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Diameter80.0 mm

Color

Remote controllableYes

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingNo

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height61.0 mm

Max. range frontal4.8m

Max. range to one side4m

Max. switching capacity1000W

With DALI interfaceNo

With remoteNo

Mounting typeOther

Nominal voltage240V

Optimal mounting height2.5m

Impact resistanceIK05

IP protection)IP23

Sensor typePassive infrared

Teach function for response brightnessNo

Temperature-25 to 50 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

NetworkableNo

Material qualityOther
