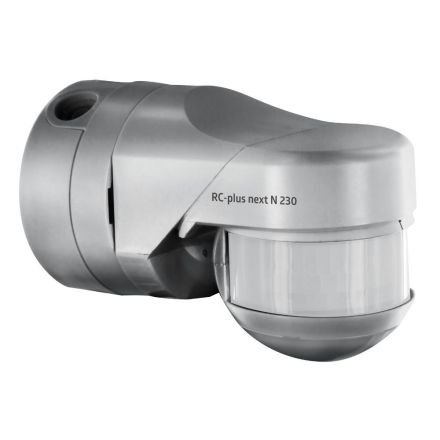

BEG 93346 RC-plus next N 230 stainless steel look motion detector

BEG 93346 RC-plus next N 230 stainless steel look motion detector

In stock

SKU: 405761

Price on request

€118.21

€0

Overview

Motion detector with 230 degree detection range and creep protection, mechanical range adjustment, different follow-up times depending on the direction of movement, uninterrupted parallel connection detection of several detectors, manual switching possible via button, movable ball head, immediate commissioning with the factory settings possible, additional functions adjustable via optional remote control, switching in zero crossing, base compatible with RC-plus (next) and Vario, easy installation thanks to plug-in base, wall, ceiling, corner installation, factory setting 3 min and 20 lux

Property	Value
Depth:	121.0 mm
Width:	71.0 mm
Height:	85.0 mm
Version:	Motion detector
Color:	Stainless steel
Nominal voltage:	230 V
RAL number (similar):	9006.0
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	2 to 500 lx
Protection class (IP):	IP54
Max. switching capacity:	3000 W
Voltage type:	AC
Max. range to one side:	20 m
Suitable for wall mounting:	yes
Min. duty cycle:	15 s
Max. Duty cycle:	16 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-25 to 50 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. presence area:	32.0 m²
Max. frontal range:	6 m
Max. Inrush current:	165 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	40 m
Number of switching zones:	800.0
Frequency:	50 to 60 Hz
Sensor swivel range, vertical:	-20 to 20 °
Sensor swivel range, horizontal:	-45 to 45 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Animal corridor:	yes
Networkable:	no
Staircase monitoring:	no
Bypass switch:	no
Suitable for wireless transmission:	no
Remote control:	yes
With signal unit:	no
Alarm function:	yes
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	yes
Antibacterial treatment:	no
Impact resistance:	IK03

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones800.0

Response brightness2 to 500 lux

Max. inrush current165 A

Max. presence range32.0 m²

HABRC-plus next N 230 stainless steel look

Manufacturer

HAN93346

GTIN4007529933464

Dimming function with dimming insertNo

Alarm functionYes

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width71.0 mm

Detection field diameter on floor40m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height85.0 mm

Constant light controlNo

Max. duty cycle16 min

Max. range frontal6m

Max. range to one side20m

Max. switching capacity3000W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9006.0

Impact resistanceIK03

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Depth121.0 mm

Animal corridorYes

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityOther
