BEG 93631 LED automatic light AL8-25-300-LEDN-HF white

BEG 93631 LED automatic light AL8-25-300-LEDN-HF white

In stock

SKU: 1030969

Price on request

€104.13

€0

Overview

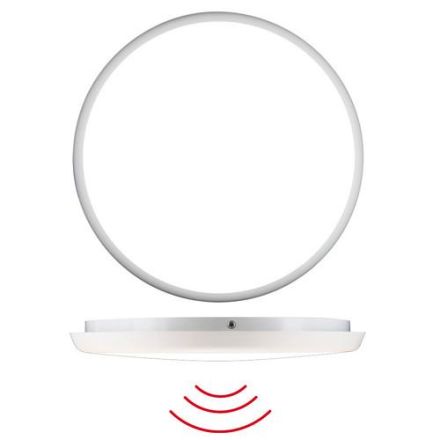

Flat LED round light for wall or ceiling mounting, Energy-efficient light with a long service life > 50,000 hours, Wide light distribution thanks to diffuse light cover, Integrated (HF) radar sensor, not visible from the outside and with a large detection range, (HF) radar technology: 5.8 GHz - reacts to the smallest movements regardless of temperature, Follow-up time, switch-on threshold and sensitivity of the sensor can be adjusted via DIP switch, Robust plastic housing made of polycarbonate, High fire protection value, Easy installation with a separate mounting bracket

Property	Value
Rated luminous flux according to IEC 62722-2-1:	2500.0 lm
Suitable for number of lamps:	1
Height/depth:	48 mm
Protection rating (IP):	IP20
Protection class:	II
Nominal voltage:	200 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	4000.0 K
Impact resistance:	IK10
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	300.0 mm
Voltage type:	AC
With motion detector:	yes
With Light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20.0 to 45.0 °C
With control gear:	no
Cover material:	opal plastic
Without dimming function:	yes
Light emission:	direct
With light sensor:	yes
Control gear:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Luminaire luminous efficacy:	100.0 lm/W
Conductor cross-section:	1.5 mm²

Characteristics

HABAL8-25-300-LEDN-HF white

Manufacturer

HAN93631

GTIN4007529936311

Outer diameter300.0 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12500.0lm

Rated ambient temperature according to IEC62722-2-1-20.0 to 45.0 °C

Operating deviceNot required

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000.0K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth48 mm

Conductor cross-section1.5 mm²

Luminaire luminous efficacy100.0lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

With operating deviceNo

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage200 to 240 V

Without dimming functionYes

Impact resistanceIK10

IP protection)IP20

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic

BEG 93631 LED automatic light AL8-25-300-LEDN-HF white

Price on request

€104.13

€0
