BEG 93633 LED ceiling light AL93-20-300-LED-3C

BEG 93633 LED ceiling light AL93-20-300-LED-3C

In stock

SKU: 1030985

Price on request

€67.05

€0

Overview

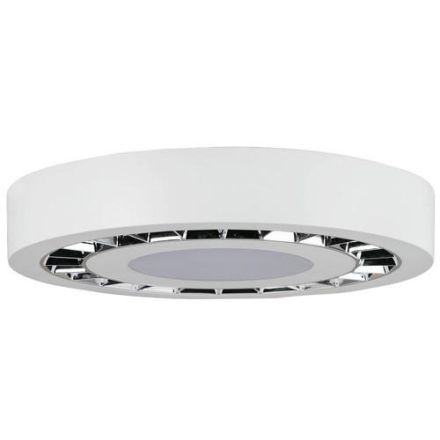

Flat round LED light for ceiling mounting, three light colors in one light, switch to choose between warm, neutral or daylight white lighting, energy-efficient light with a long service life > 50,000 hours, anti-glare system with deeply installed LEDs and diffusers, robust plastic housing made of polycarbonate, easy installation with a base including clamps

Property	Value
Rated luminous flux according to IEC 62722-2-1:	1725.0 lm
Height/depth:	40 mm
Protection rating (IP):	IP54
Protection class:	II
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	plastic
Color temperature:	3000.0 to 5700.0 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	yes
Outer diameter:	300.0 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20.0 to 45.0 °C
With control gear:	no
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Control gear:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Luminaire luminous efficacy:	86.0 lm/W
Conductor cross-section:	1.5 mm²

Characteristics

HABAL93-20-300-LED-3C

Manufacturer

HAN93633

GTIN4007529936335

Beam angleWide beam 41-80°

Outer diameter300.0 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11725.0lm

Rated ambient temperature according to IEC62722-2-1-20.0 to 45.0 °C

Operating deviceNot required

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000.0 to 5700.0 K

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth40 mm

Conductor cross-section1.5 mm²

Luminaire luminous efficacy86.0lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Without dimming functionYes

Impact resistanceIK08

IP protection)IP54

Protection classII

Voltage typeAC

Housing materialPlastic
