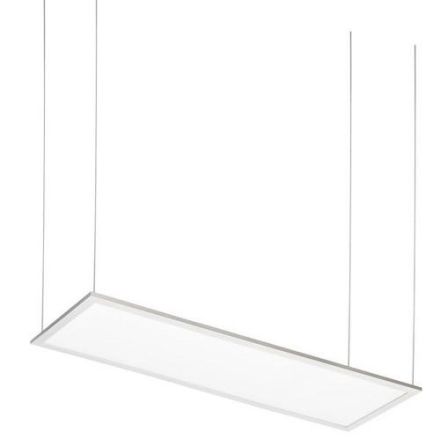

BEG 93667 LED pendant light PL2-30120D-LED-AG-DALI-TW

BEG 93667 LED pendant light PL2-30120D-LED-AG-DALI-TW

In stock

SKU: 1031007

Price on request

€429.70

€0

Overview

Suspended LED panel light, Separately controllable direct and indirect lighting, Adjustable light color from 2700 K to 6500 K, DALI driver type 8 for color control, Good glare control thanks to microprismatic UGR

Property	Value
Max. System power:	70 W
Color temperature:	2700.0 to 6500.0 K
Length:	295.0 mm
Width:	1195.0 mm
Height/depth:	14.0 mm
Protection type (IP):	IP20
Protection class:	II
Housing material:	Aluminum
With light source:	yes
With operating device:	yes
Nominal voltage:	200 to 240 V
Suspension included:	yes
Cover material:	opal plastic
Light source:	LED not replaceable
Housing color:	white
Light emission:	direct/indirect
Color rendering index CRI:	80-89
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming programmable:	no
Dimming DSI:	no
Dimming RF:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L80/B10 at 25 °C:	60000 h
Without dimming function:	no
Light distributor:	diffuser lens/optics/panel
Power factor:	0.91
Conductor cross-section:	1.5 mm²

Characteristics

HABPL2-30120D-LED-AG-DALI-TW

Manufacturer

HAN93667

GTIN4007529936670

Suspension includedYes

Rated lifetime L80/B10 at 25 °C60000 hours

Width1195.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature2700.0 to 6500.0 K

Color rendering index CRI80-89

Suitable for emergency lightingNo

Housing colorWhite

Height/Depth14.0 mm

Power factor0.91

Conductor cross-section1.5 mm²

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length295.0 mm

Max. system performance70W

With operating deviceYes

With light sourceYes

Nominal voltage200 to 240 V

Without dimming functionNo

IP protection)IP20

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
