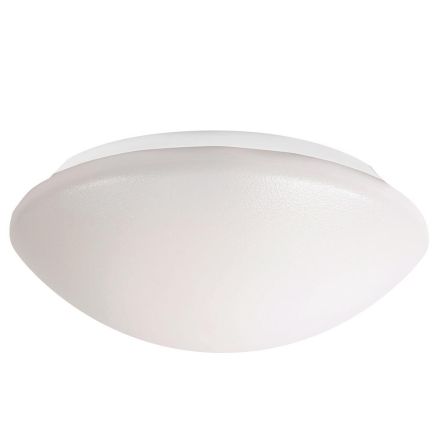

HABL11 Luxomat
HAN94448
GTIN4007529944484
Covering the luminaire with thermal insulation material possibleNo
Connection typeScrew terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Outer diameter375.0 mm
Rated ambient temperature according to IEC62722-2-1-15.0 to 30.0 °C
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps2
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth125 mm
Conductor cross-section1.5 mm²
LampsLight bulb
Light emissionDirect
Light distributorReflector
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
With air slotsNo
Nominal voltage230V
Without dimming functionNo
Impact resistanceIK02
IP protection)IP40
Protection classI
Voltage typeAC
Cover materialPlastic opal
Housing materialPlastic
