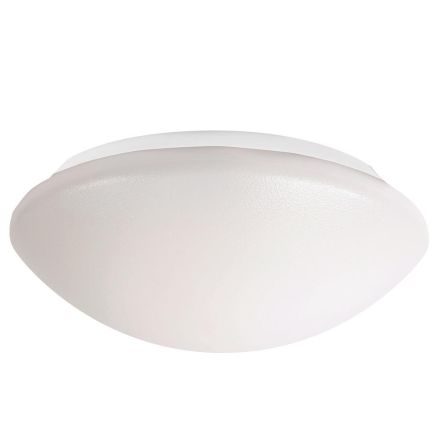

HABL1 (glass) without bulb
HAN94453
GTIN4007529944538
Connection typeScrew terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Outer diameter275.0 mm
Rated ambient temperature according to IEC62722-2-1-15.0 to 30.0 °C
Operating deviceNot required
Suitable for computer workstations according to EN 12464-1No
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming GPRSNo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeYes
Dimming phase controlYes
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming depends on the control gearYes
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
VersionE27
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for number of lamps1
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionNo
Suitable for wall mountingYes
Housing colorWhite
Height/Depth85 mm
Conductor cross-section1.5 mm²
LampsLight bulb
Light emissionDirect
Light distributorReflector
Max. system performance23W
With operating deviceNo
With motion detectorNo
With light sourceNo
With light sensorNo
Nominal voltage230V
Without dimming functionNo
IP protection)IP40
Protection classII
Voltage typeAC
Cover materialGlass opal
Housing materialPlastic
