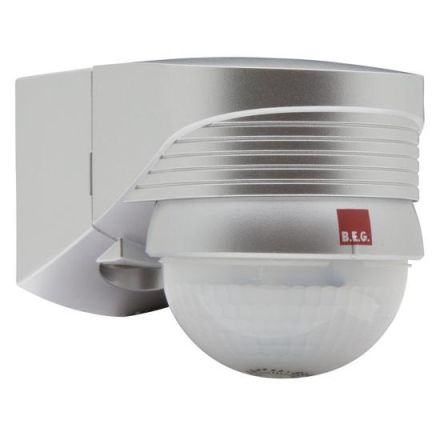

BEG Luxomat LC-plus 280° stainless steel look motion detector

BEG Luxomat LC-plus 280° stainless steel look motion detector

In stock

SKU: 388720

Price on request

€90.78

€0

Overview

Motion detector with downward detection for seamless monitoring, movable ball head, zero crossing switching, additional functions adjustable via optional remote control, easy installation with plug-in base, detection area can be limited by cover slats, special base for outside corner installation included!, factory setting 3 min and 20 lux

Property	Value
Depth:	110.0 mm
Width:	68.0 mm
Height:	78.0 mm
Design:	Motion detector
Color:	Stainless steel
Rated voltage:	240 V
RAL number (similar):	9022.0
Material:	Plastic
Response brightness:	2 to 500 lx
Protection class (IP):	IP54
Max. switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	16 m
Suitable for wall mounting:	yes
Min. duty cycle:	15 s
Max. Duty cycle:	16 min
Creep-under protection/rear field monitoring:	no
Temperature:	-25 to 50 °C
Response brightness adjustable:	yes
Response sensitivity adjustable:	yes
Max. Frontal range:	9 m
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	matt
Surface:	untreated
Material quality:	other
Detection field diameter on floor:	20 m
Control current:	2 mA
Number of switching zones:	620.0
Frequency:	50 to 60 Hz
Halogen-free:	yes
HVAC control:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	no
Alarm function:	no
Teach function for Response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Suitable for ceiling mounting:	no
Antibacterial treatment:	no
Impact resistance:	IK02

Characteristics

Bridging switchNo

With signal unitNo

Number of switching zones620.0

Response brightness2 to 500 lux

HABLuxomat LC-plus 280° stainless steel look

Manufacturer

HAN91048

GTIN4007529910489

Dimming function with dimming insertNo

Alarm functionNo

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width68.0 mm

Detection field diameter on floor20m

Color

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height78.0 mm

Max. duty cycle16 min

Max. range frontal9m

Max. range to one side16m

Max. switching capacity2000W

Min. duty cycle15s

With DALI interfaceNo

With remoteNo

Extension inputNo

Nominal voltage240V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9022.0

Impact resistanceIK02

IP protection)IP54

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-25 to 50 °C

Depth110.0 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityOther
