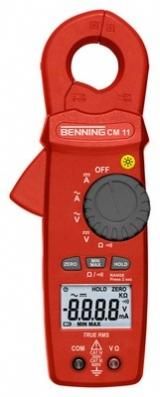

Benning CM 11 True RMS AC/DC milliampere current clamp multimeter. Digital display. 4-digit LCD display (6000 points). Backlight of the LC display. Current measuring range/DC 100 A - 10 A. Measuring ranges DC 300.0 mA / 3,000 A / 10.00 A. Current measuring range/AC 100 A - 20 A. Measuring ranges AC 300.0 mA / 3,000 A / 20.00 A. Type of current direct/alternating current. True RMS true effective value measuring method. Voltage measurement/AC 0.01 V - 600 V. Voltage measurement/DC 0.01 V - 600 V. Resistance measuring range 0.1 Ohm - 600 kOhm. Frequency measurement 1 Hz - 400 Hz. Continuity test 100 Ohm. Ideal for troubleshooting electrical systems, controls, devices and vehicle electrics. Precise measurement of small AC/DC currents with the highest resolution of 0.1 mA. Leakage current measurement, differential current measurement, leakage current measurement. Measurement of 4 mA - 20 mA process signals without interrupting the current loop. Quiescent current measurement on vehicle batteries to check for gradual battery discharge. Precise measurement of load currents up to 20 A AC/ 10 A DC. Manual/automatic measuring range selection. Automatic switch-off. APO after 15 min., can be deactivated. Automatic battery undervoltage display. Instantaneous value memory Hold. Maximum value memory MAX. Minimum value memory MIN. Zero adjustment/difference measurement ZERO. Clamp opening 23 mm. Compact dimensions length 206 x width 76 x depth 33 mm. Measuring circuit category Cat IV. Max. voltage measuring circuit category 300 V. Measuring circuit category Cat III. Max. voltage measuring circuit category 600 V. Includes case, 2 x 1.5 V Micro/ AAA/ LR03 batteries, test leads.
