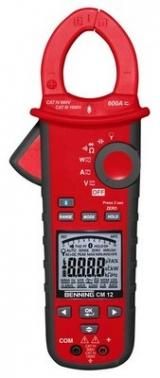

Benning CM 12 True RMS power current clamp multimeter. Digital display. Analogue bar display yes. 4-digit LCD display (9999 points). Backlight of the LC display. Power analysis in single-phase, three-phase and DC networks. Current measuring range/DC 0.01 A - 600 A. Current measuring range/AC 0.01 A - 600 A. Current type direct/alternating current. True RMS true effective value measuring method. Voltage measurement/AC 10 mV - 1000 V. Voltage measurement/DC 10 mV - 1000 V. Resistance measuring range 0.1 Ohm - 100 kOhm. Frequency measurement 0.01 Hz - 10 kHz. Capacitance measurement 0.001 µF - 4000 µF. Active power measurement 1 W - 600 kW. Power factor cos phi 0.01 - 1.00. Continuity test/diode test. Extended current measuring range via optional flexible AC current clamp converter, alternating current range 300.0 A/ 3000 A. Data logger function LOG (9999 measured values, sampling rate: 1 s - 10 min.). Measured value memory MEM (1000 measured values, automatic storage function A-SAVE). Bluetooth® Low Energy 4.0 interface. Free iOS and Android app for online transfer and download of the data logger/memory. View, save and share measured values for further evaluation. Measured value transfer in real time via Bluetooth 4.0 to smartphones and tablets (IOS/Android from 4.3). Download of the data logger LOG (max. 9999 measured values) and the measured value memory MEM (max. 1000 measured values). Storage of the measured values in CSV format. Display of the measured values via line diagram and tabular form. Low-pass filter (high frequency suppression HFR) for measurements on motor drives. Integrated volt sensor signals phase voltages and cable breaks in lines without contact (optical). Inrush current measurement INRUSH. Starting current of motors, lighting systems. THD measurement, total harmonic distortion, of the harmonics. Rotary field direction display. Manual/automatic measuring range selection. Automatic switch-off. Automatic battery undervoltage display. Instantaneous value memory HOLD. Maximum value memory MAX. Minimum value memory MIN. Peak value memory PEAK. Average value AVG. Clamp opening max. 33 mm. Measuring circuit category Cat IV. Max. voltage measuring circuit category 600 V. Measuring circuit category Cat III. Max. voltage measuring circuit category 1000 V. All ranges with overload protection. Includes case, 6 x 1.5 V Micro/AAA batteries, test leads.
