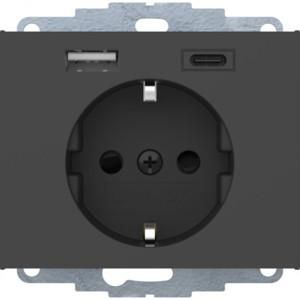

Berker 48047006 USB AC Kx anthracite matt lacquer socket SCHUKO

Berker 48047006 USB AC Kx anthracite matt lacquer socket SCHUKO

In stock

SKU: 832817

Price on request

€67.80

€0

Overview

SCHUKO/USB AC Kx socket, matt anthracite, painted. Socket with 2 USB sockets type A and type C for charging mobile devices such as tablets, smartphones, navigation devices and digital cameras via USB cable, short-circuit proof and overload proof (electronic fuse), for flush-mounted and hollow wall installation, with plug-in terminals.

Property	Value
Version:	SCHUKO
RAL number (similar):	7021
Number of units:	1
Color:	anthracite
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With Hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	claw/screw fastening
Material:	plastic
Material quality:	other
Surface:	untreated
Surface finish:	matt
Device width:	71 mm
Device height:	71 mm
Device depth:	45 mm
Insulated installation:	yes
With Loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	yes
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	35 mm

Characteristics

HAB48047006 USB AC Kx anthracite matt lacquer

Manufacturer

HAN48047006

GTIN4011334528371

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width71 mm

Device height71 mm

Device depth45 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box35 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyYes

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)7021

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityOther

Overvoltage protectionNo
