Berker MAN0104317 socket SCHUKO m KD erh BS K.5 brass

Berker MAN0104317 socket SCHUKO m KD erh BS K.5 brass

In stock

SKU: 410225

Price on request

€59.02

€0

Overview

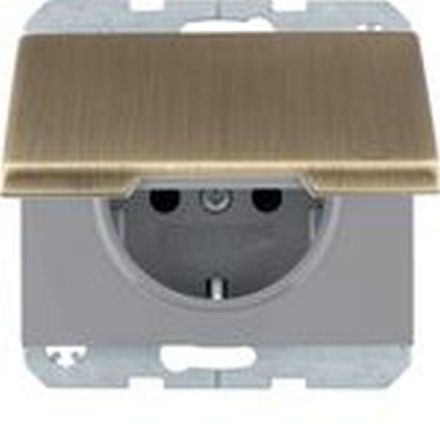

SCHUKO socket with hinged lid, raised BS, expansion ring, with plug-in terminal, K.5 brass, browned. SCHUKO® socket with hinged lid, locks in end position when opened, with imprint, with increased contact protection, with plug-in terminals designed and approved as connection terminals in accordance with 0620, with one-piece earthing bracket. Flush-mounted installation, surface program. Material: plastic, thermoplastic, aluminum-coated, halogen-free.

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	Brass
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw fastening
Material:	Metal
Surface:	Other
Surface finish:	Matte
Device width:	71 mm
Device height:	71 mm
Device depth:	47.5 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANMAN0104317

GTIN4011334541165

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

VersionSCHUKO

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw attachment

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width71 mm

Device height71 mm

Device depth47.5 mm

Halogen freeYes

Insulated installationYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceOther

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Overvoltage protectionNo
