Berker MAN0104517 socket with SK pin raised BS K.5 brass

Berker MAN0104517 socket with SK pin raised BS K.5 brass

In stock

SKU: 410179

Price on request

€44.03

€0

Into a basketIn the basketGo

Overview

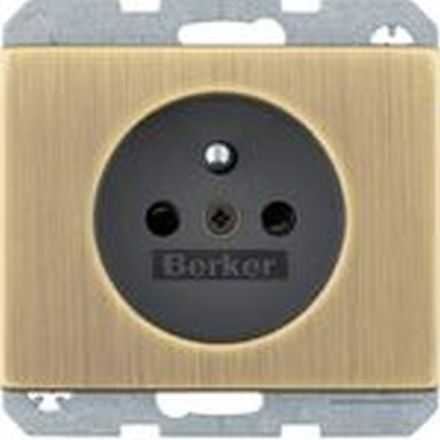

Socket with protective contact pin, raised BS, screw lift clamp, expansion clamp K.5, brass, brown.

Property	Value
Number of units:	1
Color:	Brass
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Screw terminal
With fine fuse:	no
Mounting type:	Claw fastening
Material:	Metal
Surface:	Other
Surface finish:	Matte
Device width:	71 mm
Device height:	71 mm
Device depth:	42 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK02
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Manufacturer

HANMAN0104517

GTIN4011334541189

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Number of active contacts (approx.)2

Surface finishFrosted

Ejection mechanismNo

Mounting typeClaw attachment

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP20

Device width71 mm

Device height71 mm

Device depth42 mm

Halogen freeYes

Insulated installationYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceOther

Impact resistanceIK02

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialMetal

Overvoltage protectionNo
