Bticino BMSW1003 series installation actuator 4x16 A SCS

In stock

SKU: 247567

Price on request

€195.63

€0

Overview

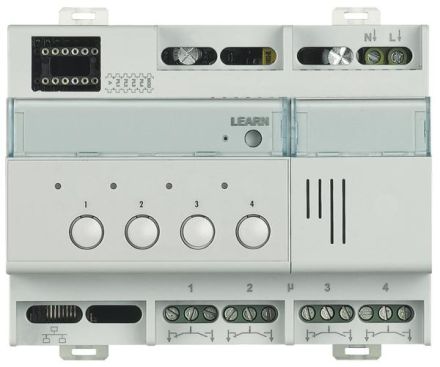

Series-mounted actuator with 4 independent changeover contacts, contact load capacity 16 A, test buttons and 4 control LEDs, 6 TE DIN. Cannot be used as a roller shutter actuator.

Property	Value
Width in modular spaces:	4
Max. number of switching outputs:	8
Mounting type:	REG
Protection class (IP):	IP20
Max. Switching capacity:	3680 W
KNX bus system:	no
Radio bus system:	no
Powernet bus system:	no
With bus connection:	yes
LON bus system:	no
Other bus systems:	other
Local/manual operation:	yes
With LED display:	yes
Suitable for C load:	yes
Rated current:	16 A
Rated operating voltage:	230 V
Different phases can be connected:	no
Modular expansion option:	no
KNX radio bus system:	no
