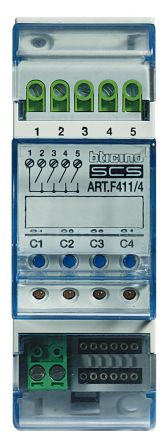

Bticino F411/4 series installation actuator 4-way with 4 closers

In stock

SKU: 247569

Price on request

€81.37

€0

Overview

Series installation actuator with 4 contacts, optionally configurable as x-way switching or x-way roller shutter actuator, contact load capacity 6 A ohmic, 500 W motor drive, 2 A inductive, 150 W fluorescent lamps, 2 test buttons and 2 control LEDs, 2 TE DIN

Property	Value
Width in modular spaces:	2
Max. number of switching outputs:	4
Mounting type:	REG
Protection class (IP):	IP20
Max. Switching capacity:	460 W
KNX bus system:	no
Radio bus system:	yes
Powernet bus system:	no
With bus connection:	yes
LON bus system:	no
Other bus systems:	other
Local/manual operation:	yes
With LED display:	yes
Suitable for C load:	yes
Rated current:	2 A
Rated operating voltage:	230 V
Different phases can be connected:	no
Modular expansion option:	no
KNX radio bus system:	no
