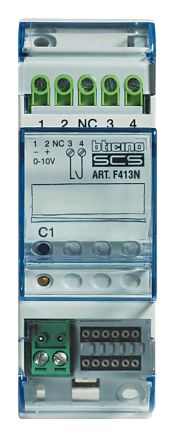

Bticino F413N control unit 1 to 10V for electronic ballast.

In stock

SKU: 248539

Price on request

€133.33

€0

Overview

Control unit 1-10 V, for controlling electronic ballasts with 1-10 V, control input, switchable to 0-10 V, outputs: 1 normally open contact, switching current 2 A cosf = 1, control output max. 25 mA with test button and status LED, 2 TE DIN

Property	Value
Width in modular units:	2
Mounting type:	REG
Number of outputs:	1
Output power:	0 to 460 W
Frequency:	50 to 60 Hz
Design:	Dimmer actuator
Load type:	capacitive
Protection class (IP):	IP20
Power booster usable:	yes
Bus system KNX:	no
Bus system radio bus:	no
Bus system Powernet:	no
With bus connection:	yes
Bus system LON:	no
Other bus systems:	other
Extension input:	no
Local/manual operation:	yes
With LED display:	yes
Max. Control current:	6 mA
Parallel operation possible:	no
KNX radio bus system:	no
Removable bus module:	no
Bidirectional radio:	no
