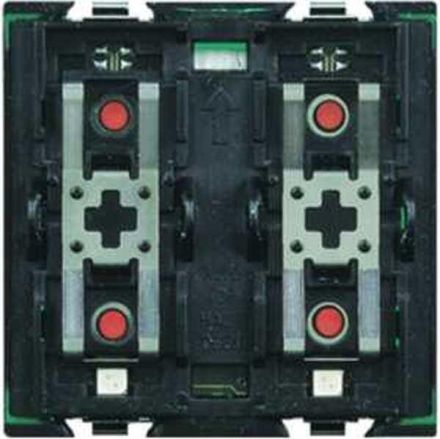

UP with 2 NO contacts and front-side local actuation, use as roller shutter actuator (locked) or for switching 2 independent loads, contact load capacity 6 A ohmic, 2 A inductive, 500 W motor drive and 150 W for fluorescent lamps, to be completed with 1- or 2-module rockers, additional N terminal for zero-crossing switching
Property | Value |
Width in modular spaces: | 2 |
Max. number of switching outputs: | 2 |
Mounting type: | Flush-mounted |
Max. Switching capacity: | 1380 W |
KNX bus system: | no |
Radio bus system: | no |
Powernet bus system: | no |
With bus connection: | yes |
LON bus system: | no |
Other bus systems: | other |
Local/manual operation: | yes |
With LED display: | yes |
Rated current: | 6 A |
Rated operating voltage: | 110 to 230 V |
Different phases can be connected: | yes |
Modular expansion option: | yes |
KNX radio bus system: | no |
Bidirectional radio: | no |
Removable bus module: | yes |
