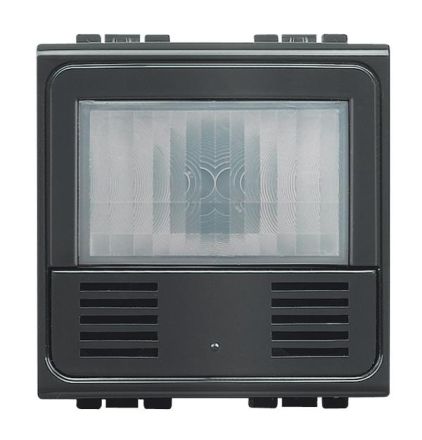

Bticino HS4658 motion detector SCS Green Switch Dualtech, (anthracite)

In stock
SKU: 249732
€189.62
Into a basketIn the basketGo

Overview

Green Switch: DualTech motion detector with passive infrared and ultrasonic detection as well as brightness sensor. Can be used as a conventional motion detector (automatic ON - automatic OFF) or as a Green Switch (ON - automatic OFF via button on the device). The settings are made using configurators or remote control Art. BMSO4003 or Art. BMSO4001. Detection range 180° - power supply BUS 27 V dc - 2 modules, color: anthracite

PropertyValue
Mounting height:1.2 m
Mounting type:Flush-mounted
Design:Presence detector
Constant light control:yes
Adjustable response sensitivity:yes
Horizontal detection angle:0 to 140 °
Creep-by protection/rear field monitoring:no
Min. duty cycle:30 s
Max. Duty cycle:15359 min
Max. range to one side:6 m
Max. Frontal range:8 m
Detection field diameter on floor:6 m
HVAC control:no
Response brightness adjustable:yes
Networkable:no
Teach function for response brightness:no
Dimming function with dimming insert:no
Suitable for protection class (IP):IP20
Suitable for wireless transmission:no
Color:anthracite
Staircase monitoring:no
Halogen-free:no
Animal corridor:no
Material:Plastic
Material quality:Thermoplastic
RAL number (similar):7037
Operating mode switch:yes

Characteristics

Operating mode switchYes
ManufacturerBticino
HANHS4658
GTIN8005543442562
Dimming function with dimming insertNo
Response sensitivity adjustableYes
Response brightness adjustableYes
VersionPresence detector
Detection field diameter on floor6m
Detection angle horizontal0 to 140 °
Suitable for protection class (IP)IP20
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeNo
Constant light controlYes
Max. duty cycle15359 min
Max. range frontal8m
Max. range to one side6m
Min. duty cycle30s
Mounting typeFlush-mounted
RAL number (similar)7037
Teach function for response brightnessNo
Animal corridorNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
