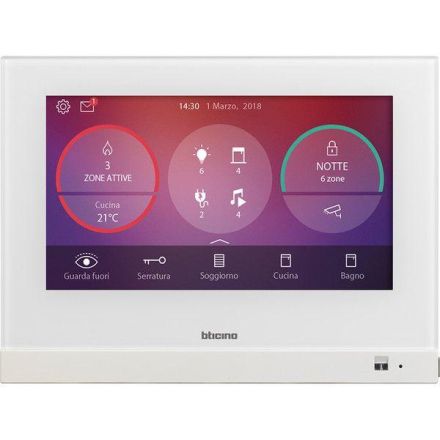

Bticino 3488W MyHome touchscreen Hometouch 7', (white)

In stock
SKU: 438348
€626.76
Into a basketIn the basketGo

Overview

Touchscreen with 7' screen and capacitive touch surface for use as a control center for the MyHome home automation system and/or as a video home station with integrated smartphone connection. The necessary app 'Door Entry for Hometouch' for iOS and Android is available free of charge in the respective online store and enables the complete functionality of a video home station (speaking, video image, calling up external cameras, etc.). The Hometouch has a physical button for opening the door, a proximity sensor and clear LED signaling. The connection to the home network is possible via LAN or WLAN. In addition, it functions (only in conjunction with server order no. MYHOMESERVER1) as a control center for the My Home home automation system (controlling lights and roller shutters, heating, sound, calling up scenarios, etc.). Connections: 1 x BUS MyHOME, 1 x BUS intercom, 1 x additional power supply, 1 x RJ45, 1 x WiFi connection Dimensions for surface mounting (W x H x D): 196 147 24 mm (a standard flush-mounted box is recommended for accommodating the connection cables). When using the flush-mounted box, order no. 3487, the installation height is only 7 mm, no additional cover frame is necessary. Power supply unit, order no. 346020, required as additional power supply. Color: white

PropertyValue
Color:white
RAL number (similar):9005
Touch function:yes
Display:color
Mounting type:flush-mounted
Material:glass
Protection class (IP):other
Design:operating panel
With bus connection:yes
Other interfaces:Ethernet
KNX bus system:no
Radio bus system:no
Powernet bus system:yes
LON bus system:no
Other bus systems:other
Composition:Control element
Material quality:other
KNX radio bus system:no
Bidirectional radio:yes

Characteristics

ManufacturerBticino
HAN3488W
GTIN8005543627433
Other bus systemsOther
VersionControl panel
Bus system radio busNo
KNX bus systemNo
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemYes
ColorWhite
Radio bidirectionalYes
With bus connectionYes
Mounting typeFlush-mounted
RAL number (similar)9005
IP protection)Other
MaterialGlass
Material qualityOther
CompilationControl element
Bticino 3488W MyHome touchscreen Hometouch 7', (white)
Bticino 3488W MyHome touchscreen Hometouch 7', (white)
€626.76
Into a basketIn the basketGo
