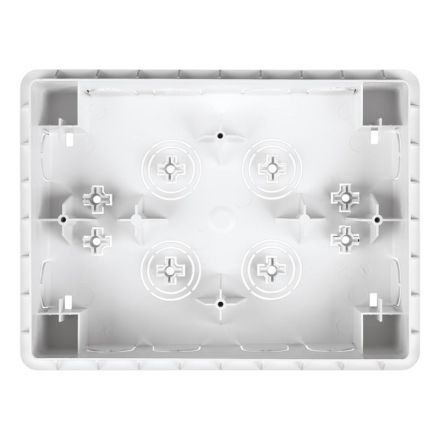

Bticino 3487 flush-mounted box for MM-Hometouch 7- 180x130mm, (white)

In stock

SKU: 409661

Price on request

€21.39

€0

Overview

Flush-mounted box for Hometouch 7' to achieve a mounting height of 7 mm. Dimensions (W x H x D): 180 130 35 mm

Property	Value
With screws:	yes
Depth:	50 mm
Length:	185 mm
Width:	136 mm
Material:	plastic
Color:	white
Sealable:	no
Halogen-free:	no
Protection class (IP):	other
Shape:	rectangular
Mounting type:	Flush-mounted
Number of entries:	16
Design:	Single
Design:	Device junction box/box
With nail tabs:	no
Windproof:	no
Introduction from behind:	yes
Can be coupled:	no
Housing feed-through through sealing membrane:	no
Cover fastening:	other
Functional integrity:	without
For number of device inserts:	1
Inner depth:	48 mm
Surface:	untreated
Fastening of devices:	screws
For pipe diameter:	20/25 mm
Pipe locking:	no
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	without
With shielding:	no
Housing feed-through through knockout opening:	yes
With rotating ring:	no
Special application:	without
Housing feed-through through pipe socket:	yes
Housing feed-through through stepped membrane:	no
Pipe locking optional:	no
Cover design:	without
