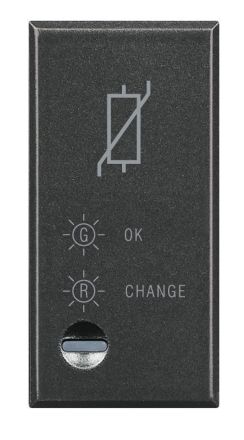

Bticino HS4536 surge arrester

In stock

SKU: 250574

Price on request

€36.62

€0

Overview

Surge arrester/fine protection for a single socket, 1-pole - nominal leakage current In = 1 kA - max. leakage current Imax. = 2 kA - max. leakage voltage Up = 1 kV - nominal voltage Un = 110 - 230 V ac - max. continuous voltage Uc = 250 V ac, color: anthracite

Property	Value
Protection level:	1 kV
Nominal voltage AC:	230 V
Maximum continuous voltage AC:	250 V
Mounting type:	Module
With remote signaling contact:	no
Nominal discharge current (8/20) (LN):	1 kA
Total discharge current (8/20) (L+N-PE):	2 kA
Nominal load current:	16 A
Number of poles:	1
Signaling on the device:	optical
Test class type 3:	no
With interference filter:	no
Max. conductor cross-section rigid (single/multi-wire):	2.5 mm²
Max. conductor cross-section flexible (fine-stranded):	2.5 mm²
Protection class (IP):	IP20
