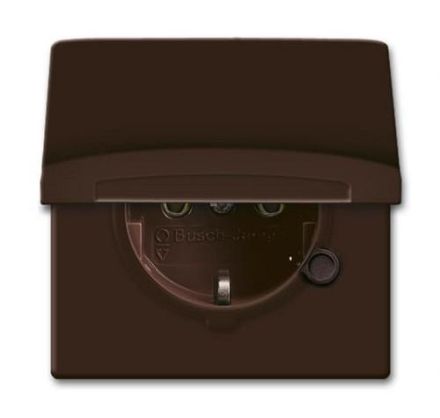

Busch-Jaeger 20 EUGK-31-101 SCHUKO® socket insert, with hinged cover brown

Busch-Jaeger 20 EUGK-31-101 SCHUKO® socket insert, with hinged cover brown

In stock

SKU: 121717

Price on request

€17.12

€0

Overview

SCHUKO socket insert, brown, flush-mounted, water-protected, special plug devices, sockets, SCHUKO socket insert with hinged lid. Supplied with sealing ring. IP 44 only in conjunction with Allwetter 44 frame. With plug connection. 2-pole (2 P + E) Nominal current: 16 A Device protection class: IP 44.

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	brown
Suitable for protection class (IP):	IP44
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular construction):	1
Device width:	12 mm
Device height:	32 mm
Device depth:	71 mm
Insulated installation:	yes
With Loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

Waterproof socketYes

Field of application, , ,

Insert Module TypeSocket

Electrical wiringRecessed Switches

FinishPlastic

ColorBrown

WaterproofYes

HAB20 EUGK-31-101

Manufacturer

HAN2CKA002064A0286

GTIN4011395172155

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)1.0

Number of phases1.00

Number of active contacts (approx.)2.0

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP44

Device width12 mm

Device height32 mm

Device depth71 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
