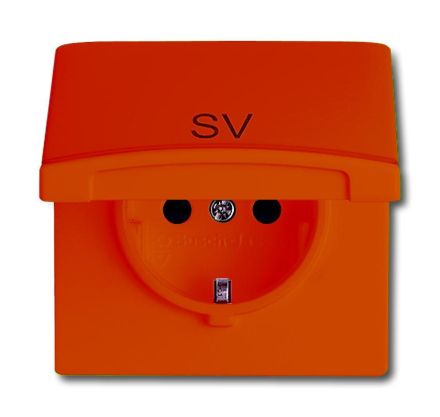

Busch-Jaeger 20 EUGKB-14-101 SCHUKO® socket insert, with hinged lid and print orange RAL 2004

Busch-Jaeger 20 EUGKB-14-101 SCHUKO® socket insert, with hinged lid and print orange RAL 2004

In stock

SKU: 121728

Price on request

€22.64

€0

Overview

SCHUKO socket insert, orange RAL 2004, flush-mounted, water-protected, special plugs and sockets, sockets, SCHUKO socket insert with hinged lid and print. Continuous colour marking (hinged lid and base). With increased contact protection. Supplied with sealing ring. IP 44 only in conjunction with Allwetter 44 frame. With plug connection. 2-pole (2 P + E) Nominal current: 16 A Protection class of device: IP 44

Property	Value
Version:	SCHUKO
RAL number (similar):	2004
Number of units:	1
Color:	orange
Suitable for protection class (IP):	IP44
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With Hinged lid:	yes
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	additional safety supply (orange)
Twisted central insert:	no
Print/marking:	ZSV
Connection type:	Plug terminal
With fine fuse:	no
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular design):	1
Device width:	12 mm
Device height:	32 mm
Device depth:	71 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

Waterproof socketYes

HAB20 EUGKB-14-101

Manufacturer

HAN2CKA002064A0297

GTIN4011395172285

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1.0

Number of modules (for modular construction)1.0

Number of phases1.00

Number of active contacts (approx.)2.0

Printing/markingZSV

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP44

Device width12 mm

Device height32 mm

Device depth71 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidYes

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)2004

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundNo

Special power supplyAdditional safety supply (orange)

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
