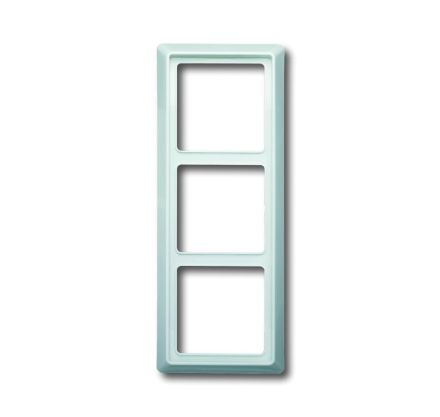

Busch-Jaeger 2103-32 cover frame, 3-way frame white

Busch-Jaeger 2103-32 cover frame, 3-way frame white

In stock

SKU: 121796

Price on request

€20.60

€0

Overview

Cover frame, white, flush-mounted, water-protected, special plug-in devices, Allwetter 44 (IP 44) frame, cover frame 3-way frame IP 44 only in conjunction with a rocker, central plate etc., of the Allwetter 44 range. Device protection class: IP 44

Property	Value
Height:	233 mm
Width:	91 mm
Material:	plastic
RAL number (similar):	1013
Mounting direction:	horizontal and vertical
Number of units:	3
Color:	white
Protection class (IP):	IP44
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	14 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	3
Number of units vertical:	3
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Installation width:	71 mm
Installation height:	71 mm
Transparent:	no
Number of switch inserts:	3
With mounting frame:	no
Impact resistance:	IK03
