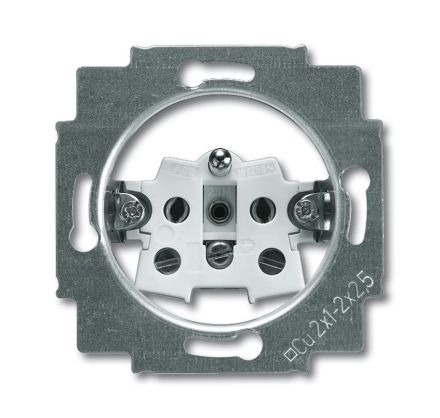

Busch-Jaeger 23 M-504 socket insert, with earthing pin

Busch-Jaeger 23 M-504 socket insert, with earthing pin

In stock

SKU: 235758

Price on request

€6.85

€0

Overview

Socket insert, flush-mounted, water-protected, special plug devices, sockets, socket insert with earthing pin With screw connection. Suitable for the countries: Belgium, France, Poland, Czech Republic. 2-pole (2 P + E) Rated current: 16 A

Property	Value
Version:	French standard NF
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
With built-in USB power supply:	no
Number of units:	1
Number of modules (with modular design):	1
Number of phases:	1
Print/marking:	without print
Connection type:	screw terminal
With hinged lid:	no
With increased contact protection:	no
Text field/labeling area:	no
Color:	other
Transparent:	no
Lockable:	no
Ejection mechanism:	no
Insulated installation:	yes
With Functional lighting:	no
With orientation lighting:	no
Overvoltage protection:	no
Residual current protection:	no
With fine fuse:	no
Special power supply:	without special power supply
Mounting type:	Flush-mounted
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Duroplast
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
Antibacterial treatment:	no
With on/off switch:	no
With loop-through function:	yes
Twisted central insert:	no
Rated current:	16
Rated voltage:	250
Frequency:	50
Suitable for protection class (IP):	IP20
For 'difficult conditions' (according to VDE):	no
Impact resistance:	IK00
Device width:	71
Device height:	12
Device depth:	32
Min. depth of device box:	40

Characteristics

HAB23 M-504

Manufacturer

HAN2CKA002017A0841

GTIN4011395068328

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of phases1

Printing/markingWithout imprint

VersionFrench standard NF

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50

Device width71

Device height12

Device depth32

Halogen freeYes

Insulated installationYes

Min. depth of the device box40

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250

Rated current16

SurfaceUntreated

Impact resistanceIK00

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
