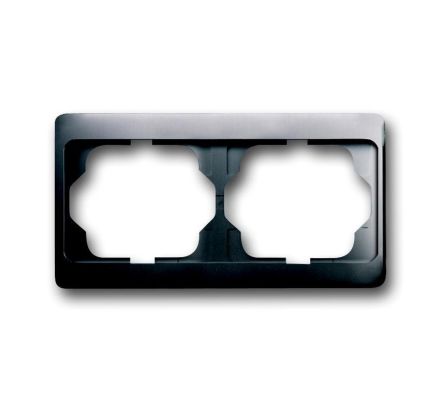

Busch-Jaeger 1722 KA-20 cover frame, 2-way frame platinum

Busch-Jaeger 1722 KA-20 cover frame, 2-way frame platinum

In stock

SKU: 121305

Price on request

€20.08

€0

Into a basketIn the basketGo

Overview

Cover frame, platinum, alpha, frame alpha exclusive, cover frame 2-way frame horizontal. Protection class device: IP 20

Property	Value
Height:	12 mm
Width:	152 mm
Material:	metal
Mounting direction:	horizontal
Number of units:	2
Color:	Platinum
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	81 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	aluminum
Surface:	painted
Surface finish:	matt
Number of units horizontal:	2
Mounting type:	clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	2
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch frames

Gang

HAB1722 KA-20

Manufacturer

HAN2CKA001754A4374

GTIN4011395125632

Number of Units2

Number of units horizontal2

Number of switch inserts2

Surface finishFrosted

Mounting typeClamp fastening

Width152 mm

Diameter bore (opening)71 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height12 mm

With hinged lidNo

With mounting frameNo

Mounting directionHorizontal

SurfacePainted

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth81 mm

TransparentNo

MaterialMetal

Material qualityAluminum
