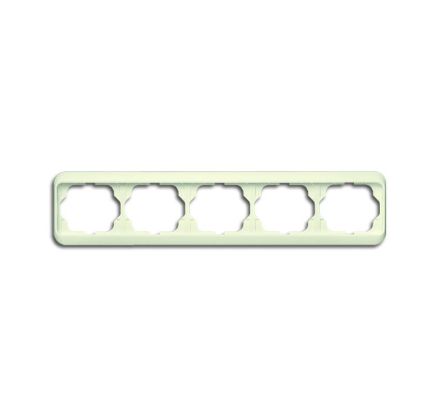

Busch-Jaeger 1725-22G cover frame, 5-way frame ivory/white

Busch-Jaeger 1725-22G cover frame, 5-way frame ivory/white

In stock

SKU: 121371

Price on request

€27.77

€0

Into a basketIn the basketGo

Overview

Cover frame, ivory/white, alpha, frame alpha nea, cover frame 5-way frame horizontal. Protection class device: IP 20

Property	Value
Height:	19 mm
Width:	96 mm
Material:	plastic
RAL number (similar):	1013
Mounting direction:	horizontal
Number of units:	5
Color:	other
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	11 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	5
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	5
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch frames

ColorWhite

HAB1725-22G

Manufacturer

HAN2CKA001754A3823

GTIN4011395920701

Number of Units5

Number of units horizontal5

Number of switch inserts5

Surface finishGlittering

Mounting typeClamp fastening

Width96 mm

Diameter bore (opening)71 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height19 mm

With hinged lidNo

With mounting frameNo

Mounting directionHorizontal

SurfaceUntreated

RAL number (similar)1013

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth11 mm

TransparentNo

MaterialPlastic

Material qualityThermoplastic
