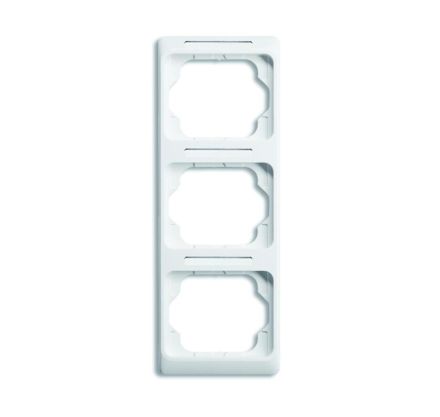

Busch-Jaeger 1733 NSKA-24G cover frame, 3-way frame studio white high gloss

In stock

SKU: 121268

Price on request

€20.93

€0

Overview

With viewing window and label holder. With small corner radii for cut duct covers. Vertical. Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de. See label holder. Suitable for duct installations with 80 mm duct cover.

Property	Value
Height:	11 mm
Width:	223 mm
Material:	plastic
RAL number (similar):	9016
Mounting direction:	vertical
Number of units:	3
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Depth:	81 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units vertical:	3
Mounting type:	Clamp fastening
Diameter of bore (opening):	71 mm
Transparent:	no
Number of switch inserts:	3
With mounting frame:	no
Impact resistance:	IK03
