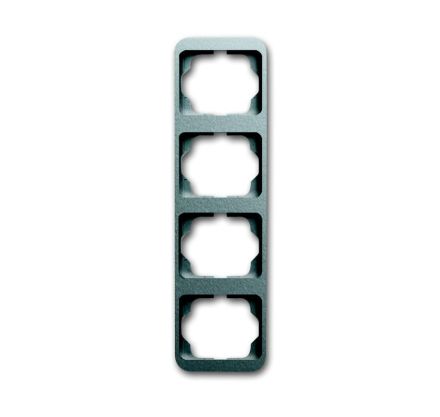

Busch-Jaeger 1734-266 cover frame, 4-way frame titanium

Busch-Jaeger 1734-266 cover frame, 4-way frame titanium

In stock

SKU: 121378

Price on request

€47.15

€0

Into a basketIn the basketGo

Overview

Cover frame, titan, alpha, frame alpha nea, cover frame 4-way frame vertical. Protection class device: IP 20

Property	Value
Height:	11 mm
Width:	294 mm
Material:	metal
Mounting direction:	vertical
Number of units:	4
Color:	titanium
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	81 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	aluminium
Surface:	anodized/anodized
Surface finish:	matt
Number of units vertical:	4
Mounting type:	clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	4
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch frames

HAB1734-266

Manufacturer

HAN2CKA001754A4397

GTIN4011395125892

Number of Units4

Number of units vertical4

Number of switch inserts4

Surface finishFrosted

Mounting typeClamp fastening

Width294 mm

Diameter bore (opening)71 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height11 mm

With hinged lidNo

With mounting frameNo

Mounting directionVertical

SurfaceAnodized

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth81 mm

TransparentNo

MaterialMetal

Material qualityAluminum
