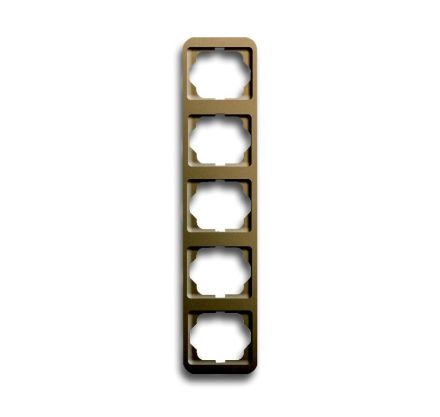

Busch-Jaeger 1735-21 cover frame, 5-way frame bronze

Busch-Jaeger 1735-21 cover frame, 5-way frame bronze

In stock

SKU: 121339

Price on request

€62.27

€0

Into a basketIn the basketGo

Overview

Cover frame, bronze, alpha, frame alpha nea, cover frame 5-way frame vertical. Protection class device: IP 20

Property	Value
Height:	19 mm
Width:	96 mm
Material:	metal
Mounting direction:	vertical
Number of units:	5
Color:	Bronze
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	11 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	aluminium
Surface:	anodized/anodized
Surface finish:	matt
Number of units vertical:	5
Mounting type:	clamp fastening
Hole diameter (opening):	71 mm
Transparent:	no
Number of switch inserts:	5
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch frames

HAB1735-21

Manufacturer

HAN2CKA001754A1785

GTIN4011395170007

Number of Units5

Number of units vertical5

Number of switch inserts5

Surface finishFrosted

Mounting typeClamp fastening

Width96 mm

Diameter bore (opening)71 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height19 mm

With hinged lidNo

With mounting frameNo

Mounting directionVertical

SurfaceAnodized

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth11 mm

TransparentNo

MaterialMetal

Material qualityAluminum
