Busch-Jaeger 1769-24G central plate, with label field studio white high gloss

In stock

SKU: 235526

Price on request

€18.32

€0

Overview

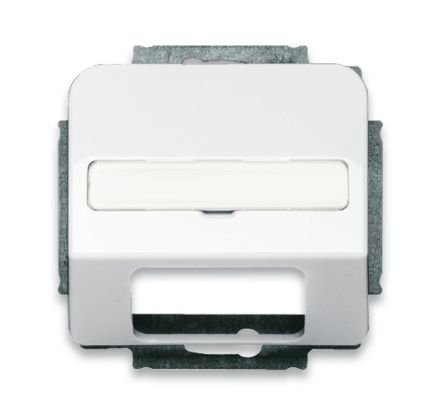

Central plate, studio white high gloss, alpha, covers for data communication, central plate with labeling field with angled outlet. For AMP-ACO and Siemens ICCS/SML inserts. Only suitable for installation kit: AMP/type ACO 1711855-1. Size of the labeling field: 53 x 11 mm. Without spreader.

Property	Value
Composition:	Control element
Use:	AMP-ACO
Support ring:	yes
With dust protection:	no
With hinged lid:	no
Outlet direction:	straight
Labeling field:	with labeling field
With print:	no
Mounting type:	Flush-mounted
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
Color:	white
RAL number (similar):	9016
Transparent:	no
Fastening type:	Fastening with screw
Number of modules (with modular design):	1
With bushings/couplings:	no
Suitable for number of sockets/couplings:	1
With strain relief:	no
Sockets shielded:	no
Housing shielded:	no
Lamp terminal:	no
Suitable for protection class (IP):	IP20
Device width:	71
Device height:	71
Device depth:	32
Min. Depth of the device box:	40
