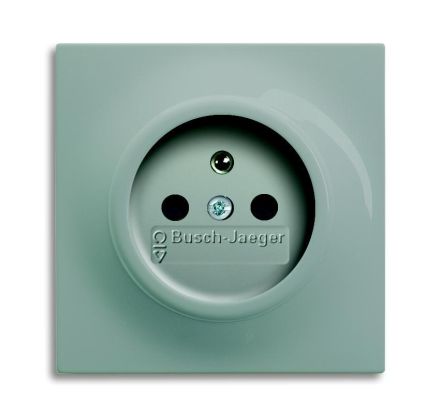

Busch-Jaeger 20 MUCKS-79-500 socket insert, with earthing pin special plugs champagne metallic

Busch-Jaeger 20 MUCKS-79-500 socket insert, with earthing pin special plugs champagne metallic

In stock

SKU: 118336

Price on request

€21.46

€0

Overview

With plug connection. With integrated increased contact protection. Suitable for the countries: Poland, Czech Republic. 2-pole (2 P + E)

'Socket with integrated increased contact protection. Replaces the previous term '... with child protection'. Manufactured to order.'

'Socket with integrated increased contact protection. Replaces the previous term '... with child protection'. Manufactured to order.'

Property	Value
Number of units:	1
Color:	other
Suitable for protection class (IP):	IP20
Rated voltage:	250 V
Rated current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
Number of modules (with modular construction):	1
Device width:	71 mm
Device height:	12 mm
Device depth:	32 mm
Insulated installation:	yes
With Loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	2
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

HAB20 MUCKS-79-500

Manufacturer

HAN2017-0-0837

GTIN4011395054000

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width71 mm

Device height12 mm

Device depth32 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfacePainted

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
