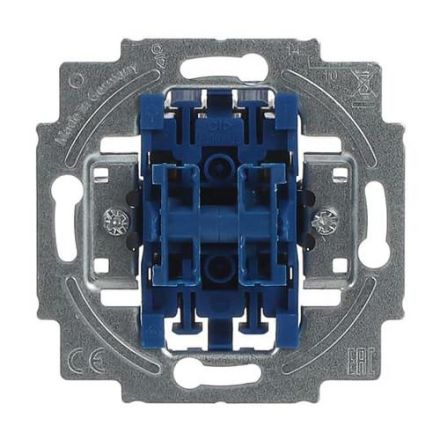

Busch-Jaeger 2000/4 US blind switch insert, 1-pole, switch

In stock
SKU: 121961
€17.33
Into a basketIn the basketGo

Overview

With reversal lock. Only install in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, Part 1, or Busch-Jaeger item no. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls or 3060 flush-mounted box for concrete. These blind switches/buttons reliably prevent the direction of travel from changing too quickly.


Version: 1-pole, switch
Design: flush-mounted

PropertyValue
Color:blue
Design:1-pole switch
Number of buttons:2
Suitable for protection class (IP):IP20
Operating method:rocker
Nominal voltage:250 V
Halogen-free:yes
Mounting type:flush-mounted
Text field/labeling area:no
Composition:Basic element
Electrical and mechanical locking:yes
Mechanically operable:yes
Electronically operable:no
Material:Plastic
Material quality:Thermoplastic
Surface:untreated
Surface finish:matt
Fastening type:Claw/screw fastening
RAL number (similar):5010
Rated current:10 A
Transparent:no
Number of poles:1
Min. depth of the device box:40 mm

Characteristics

Insert Module TypeBlind covers
Number of buttons2
HAB2000/4 US
ManufacturerBUSCH-JAEGER
HAN2CKA001012A1309
GTIN4011395008706
VersionSwitch 1-pole
Surface finishFrosted
Operating modeSeesaw
Mounting typeClaw/screw fastening
Rated current10A
ColorBlue
Suitable for outdoor useNo
Suitable for protection class (IP)IP20
Halogen freeYes
Min. depth of the device box40 mm
Mounting typeFlush-mounted
Nominal voltage250V
SurfaceUntreated
Number of poles1
RAL number (similar)5010
Text field/label areaNo
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
