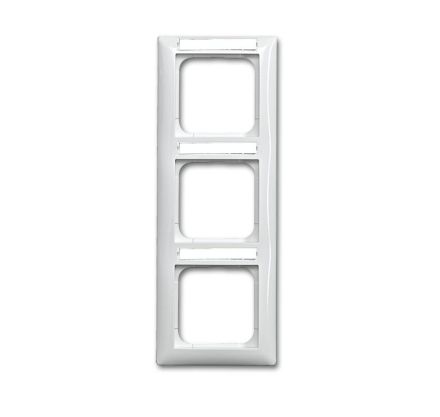

Busch-Jaeger 1723 NS-914 cover frame, 3-way frame alpine white

Busch-Jaeger 1723 NS-914 cover frame, 3-way frame alpine white

In stock

SKU: 235721

Price on request

€12.80

€0

Into a basketIn the basketGo

Overview

Cover frame, alpine white, Busch-balance SI, frame Busch-balance SI, cover frame 3-way frame With viewing window and label holder. Vertical. With small corner radii for cut duct covers. Protection class device: IP 20

Property	Value
Height:	11 mm
Width:	223 mm
Material:	plastic
RAL number (similar):	9010
Mounting direction:	vertical
Number of units:	3
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Depth:	81 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units vertical:	3
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Installation width:	55 mm
Installation height:	55 mm
Transparent:	no
Number of switch inserts:	3
With mounting frame:	no
Impact resistance:	IK03

Characteristics

Insert Module TypeLight switch frames

ColorWhite

HAB1723 NS-914

Manufacturer

HAN2CKA001754A4553

GTIN4011395191569

Number of Units3

Number of units vertical3

Number of switch inserts3

Surface finishGlittering

Mounting typeClamp fastening

Width223 mm

Diameter bore (opening)71 mm

Installation width55 mm

Installation height55 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height11 mm

With hinged lidNo

With mounting frameNo

Mounting directionVertical

SurfaceUntreated

RAL number (similar)9010

Impact resistanceIK03

IP protection)IP20

Text field/label areaYes

Depth81 mm

TransparentNo

MaterialPlastic

Material qualityThermoplastic
