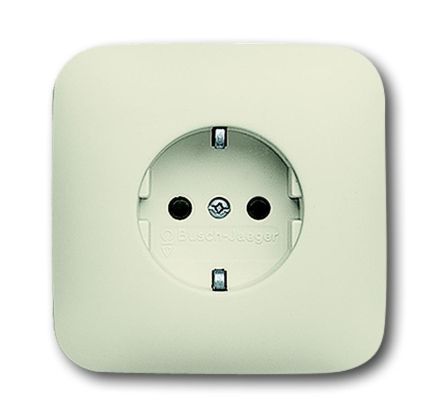

Busch-Jaeger 20 EUJ-212 SCHUKO® flush-mounted socket white

Busch-Jaeger 20 EUJ-212 SCHUKO® flush-mounted socket white

In stock

SKU: 118231

Price on request

€5.42

€0

Overview

SCHUKO flush-mounted socket, white, SI/Reflex SI, sockets, SCHUKO flush-mounted socket With plug connection. 2-pole (2 P + E) Complete cover. Nominal current: 16 A Protection class device: IP 20

Property	Value
RAL number (similar):	1013
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With Fine-wire fuse:	no
Mounting type:	claw/screw fastening
Material:	plastic
Material quality:	duroplast
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular design):	1
Device width:	12 mm
Device height:	32 mm
Device depth:	71 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
With Signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
Min. depth of device box:	40 mm

Characteristics

ColorWhite

HAB20 EUJ-212

Manufacturer

HAN2CKA002011A1367

GTIN4011395195208

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)1

Number of phases1

Number of active contacts (approx.)2

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Frequency50Hz

Suitable for protection class (IP)IP20

Device width12 mm

Device height32 mm

Device depth71 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage250V

Rated current16A

SurfaceUntreated

RAL number (similar)1013

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityDuroplast

Overvoltage protectionNo
